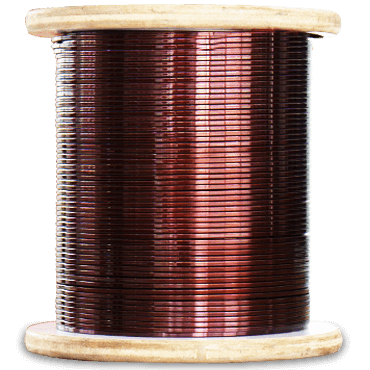

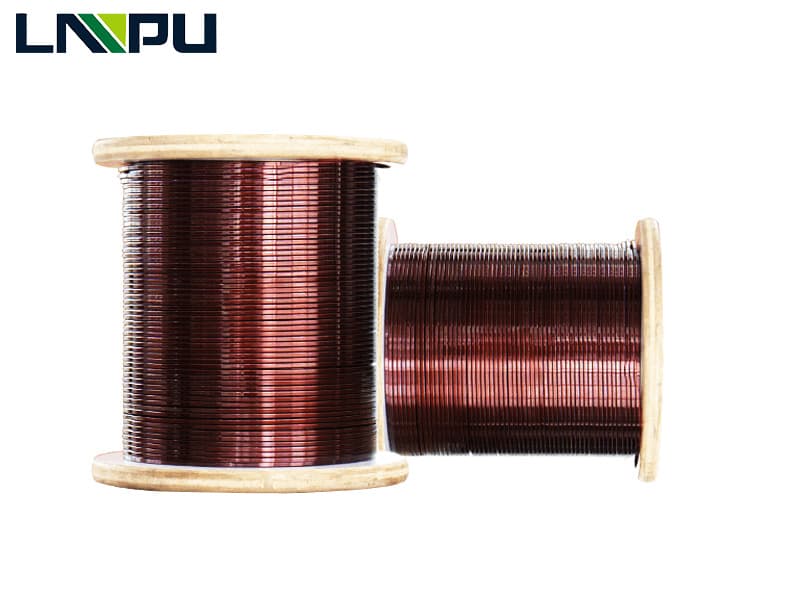

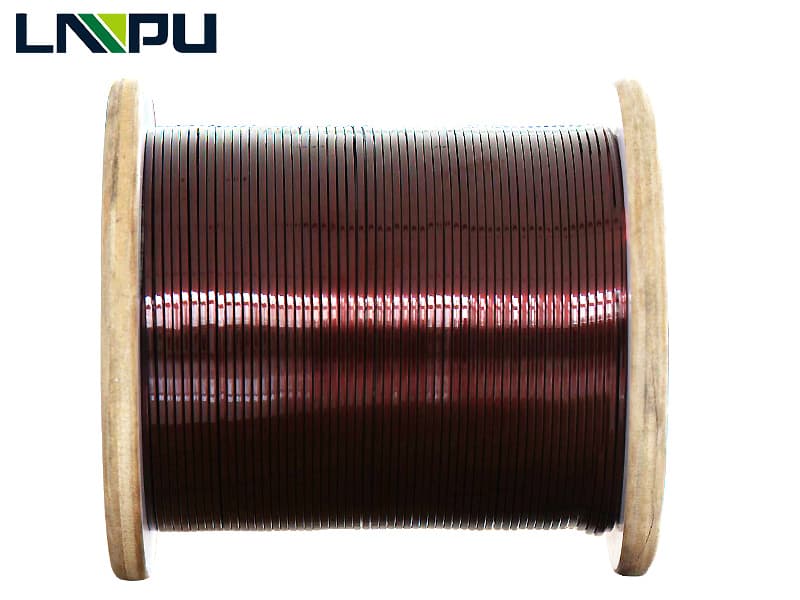

Enameled Square Aluminum Wire

DiameterRange (mm): a(b):1.2-9.1mm
Temperature Class (C): 155, 180, 200, 220
Standard: IEC, NEMA, GB, JIS
Color: natural color, red, blue, green and so on
UL NO: E345303
Package: 30kg/50kg wooden spool, plastic spool and according to customer requirements

We're here to help:Easy ways to get the answers you need.

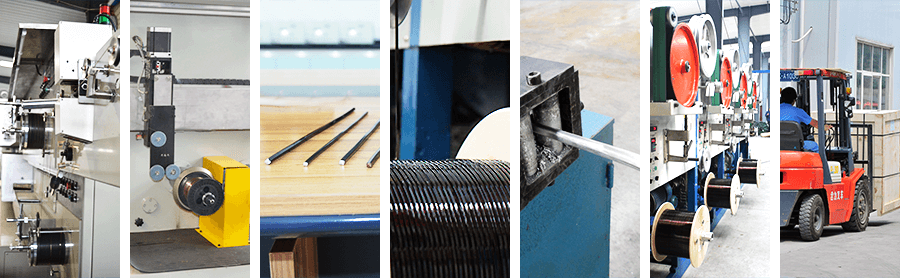

Production Process: Extrude & Draw Stretch the Thread Ultrasonic Clean; Panit Toast Spool

Size: a(b):0.8-7mm
Thermal Class: 155,180,200,220

Main Products:: Class 155 Polyester Enameled Square Aluminum Wire; Class 180 Polyesterimide/Polyamide Enameled Square Aluminum Wire; Class 200 Modified Polyeste Enameled SquareAluminum Wire; Class 200 Polyamide-imide Enameled SquareAluminum Wire; Class 220 Polyesterimide Enameled Square Aluminum Wire

Other Names:: Enameled Aluminum Winding Wires; Enamel Insulated Aluminum Wire; Double Enameled Aluminum Wire

Production Characteristics

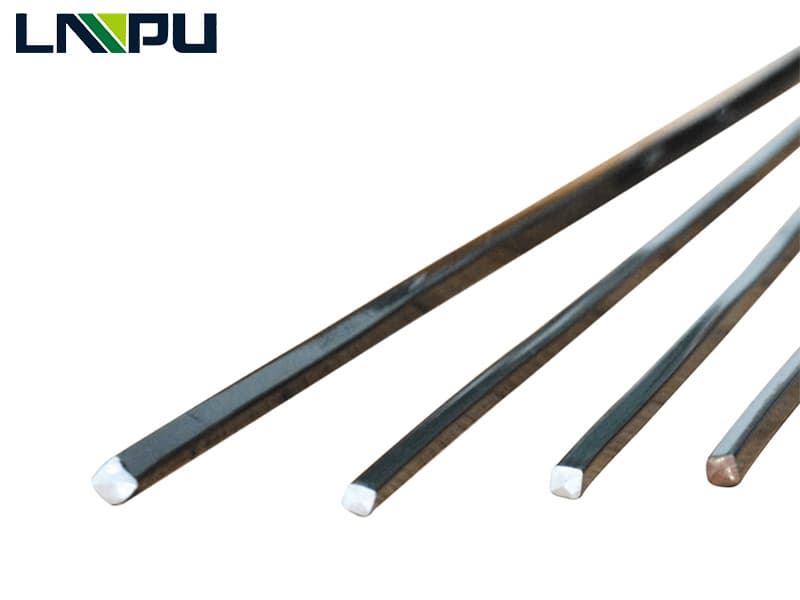

1, Our Enameled Square Aluminum Wire consists of conductor and insulation layer. Bare aluminum wire softens by the fire, and then paint and toast many times.
2.Enameled aluminum wire’s flame-retardant level is B, so it has good better shielding effectiveness and high mechanical property.
3, The biggest advantage of aluminum wire is its weight. It is three times as light as copper wire. so it can reduce cost. And it has better adhesion, so it can reduce transportation expenses and add value.
4, Our Enameled Square Aluminum Wire has good stability and excellent heat resistance.
Insulation: ELANTAS
Intelligent on-line monitoring equipment

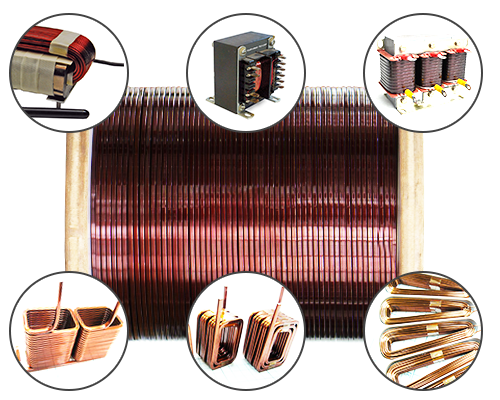

Application: The Application Of enameled square aluminum wire
Typical application include:
Transformers/Generators/Refrigeration systems/Class C generators/UPS power suppliers/Electronic transformers.

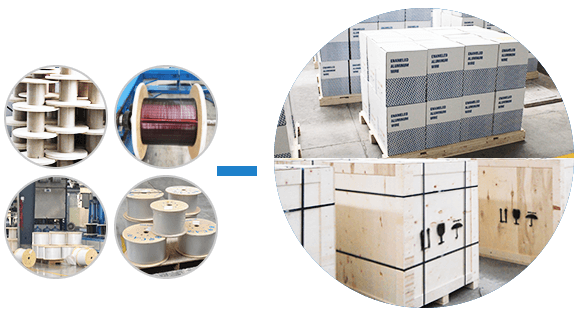

Packing: Plastic spool or wooden spool, flat wire length are customizable;
The usual spool specifications:
30kg/50kg/150kg wooden spool，plastic spool，or according to customer requirements.
About The Packing, We Can According To Customers' Requirement!

Test of Main technical:

The following is mian technical test;The set standards according to customers’ requirement. Besides,We Providing OEM,Please pay attention to that.

Item	Requirement of the standards
Stardards	IB/T7095IEC60317-0-2 MW36--A MW36--C
Electrical resistivity	0.O17241/0.02785Ω mm²/m
Breakdown voltage	over 1000/2000v
Heat shock	200/220/240 C insulation film no cracking
Resistance to solvents	Standard solvent.Use a pencil of hardness”2H”the coating shall not be removed
Cut Through	320,360,400℃, 2mins not break down
