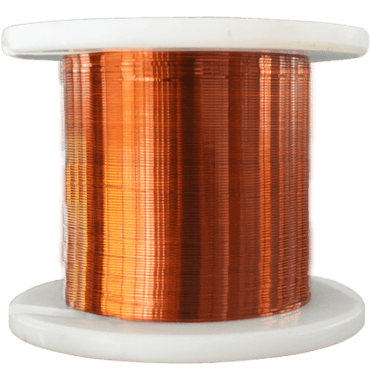

Ultra Fine Rectangular Enameled Copper Wire

We're here to help:Easy ways to get the answers you need.

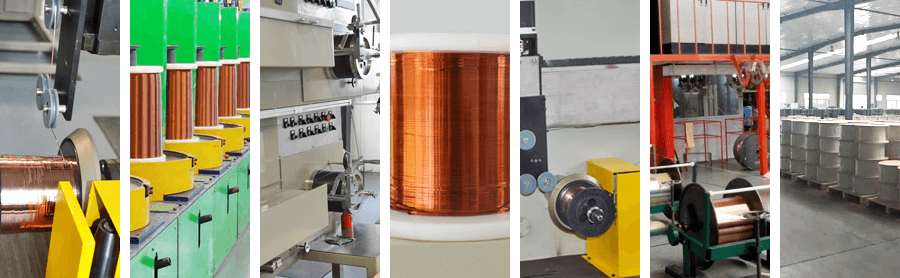

Production Process: Extrude & Draw Stretch the Thread Ultrasonic Clean; Panit Toast Spool

Size: a:0.025-0.4mm b:0.25-3mm
Thermal Class: 200,220

Main Products:: Class 200 Polyester-imide Ultra Fine Rectangular Enameled Copper Wire; Class 220 Polyester-imide Ultra Fine Rectangular Enameled Copper Wire

Other Names:: Super Fine Enameled Copper Wire; Very Fine Enameled Wire; Super Fine Flat Enameled Copper Wire

Production Characteristics

1.Appearance: Smooth and bright, free from lacquer wart.
2.Our Ultra Fine Rectangular Enameled Copper Wire has good insulation, excellent conductivity, low electric resistance and no noise.
3. Our Ultra Fine Rectangular Enameled Copper Wire has good flexibility and good stretching resistance.
4. The technology of our ultra fine rectangular enameled copper wire is awarded to Chinese specialty wire Research Center and IEC standard perfect testing laboratory. And our diameter can be very fine.
5. Our Ultra Fine Rectangular Enameled Copper Wire's diameter can be mininum to 0.025.
6. Our Ultra Fine Rectangular Enameled Copper Wire can be used in some specical fields.

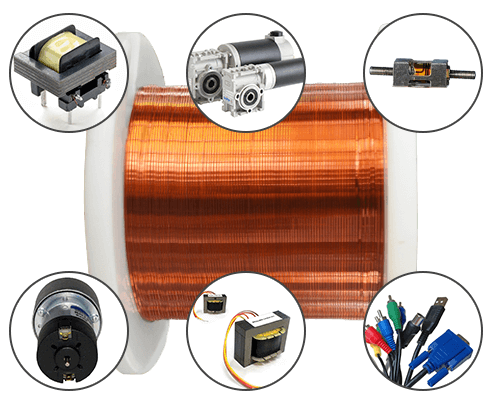

Application: The Application Of ultra fine rectangular enamled copper wire
Typical application include:
Electronic transformers/Micro motors/Computer connectors/Other specific purposes.

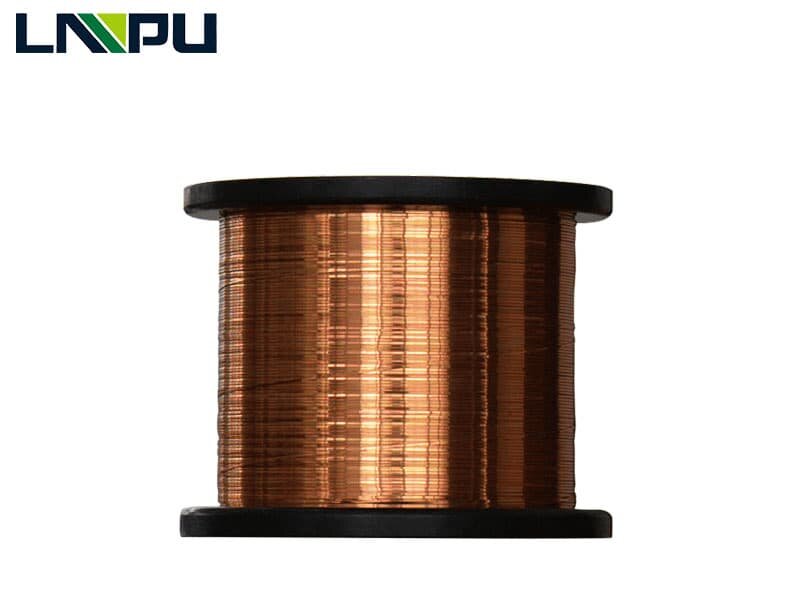

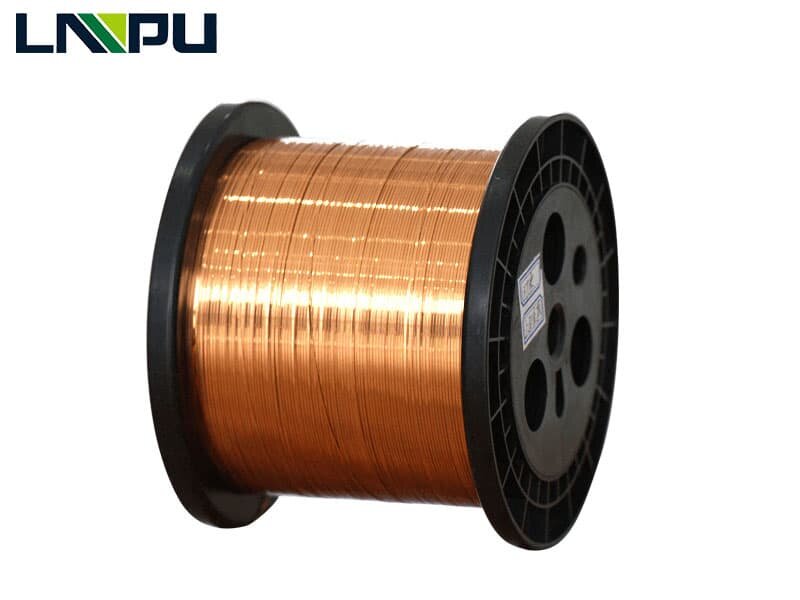

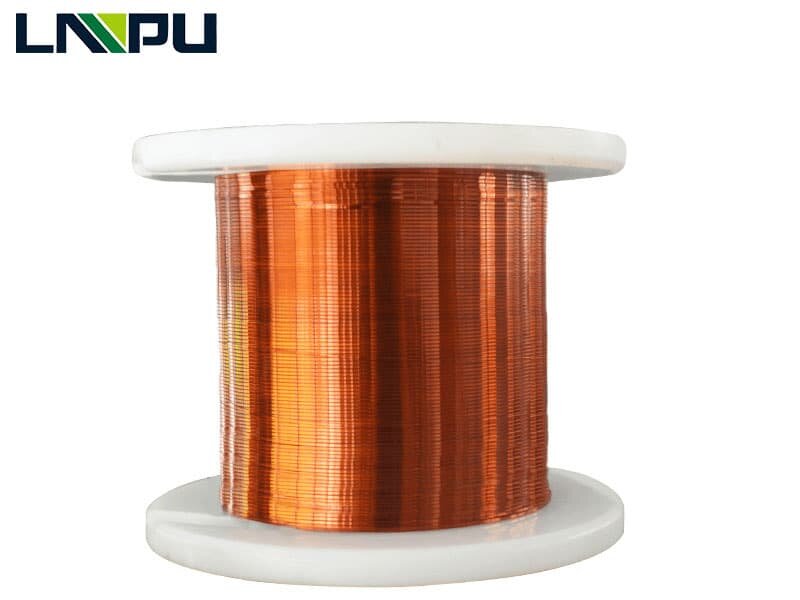

Packing: Plastic spool or wooden spool, flat wire length are customizable;
The usual spool specifications :
Wooden spool, plastic spool or according to customer requirement
About The Packing, We Can According To Customers' Requirement!

Test of Main technical

The following is mian technical test;The set standards according to customers’ requirement. Besides,We Providing OEM,Please pay attention to that.

Item	Requirement of the standards
Stardards	IEC60317
Electrical resistivity	≤0.02785Ω mm²/m
Breakdown voltage	2200V
Heat shock	The minimum Heat shock temperature 220℃
Resistance to solvents	Standard solvent.Use a pencil of hardness”1H”the coating shall not be removed
Cut Through	320℃, 2mins not break down
