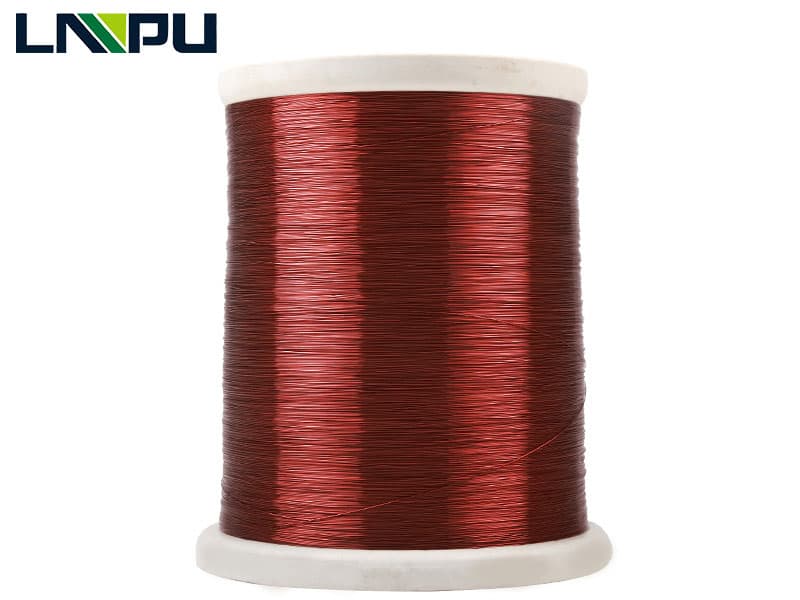

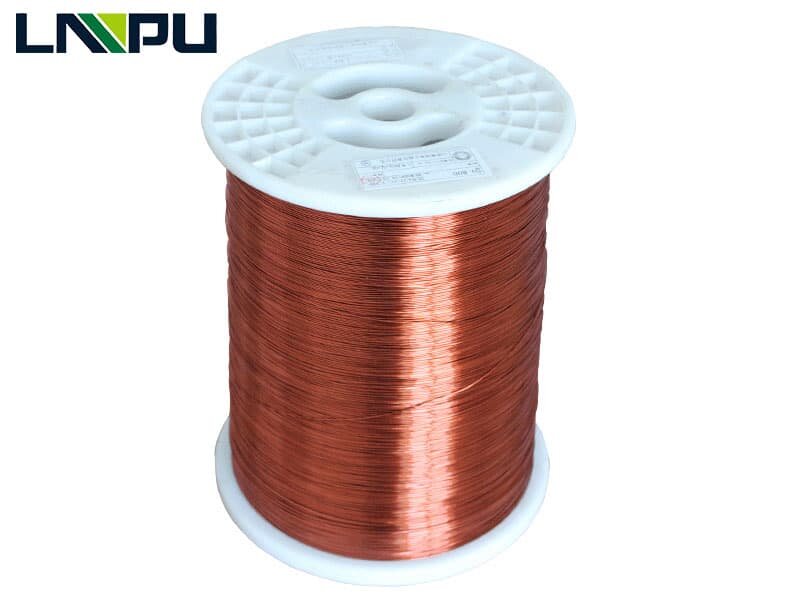

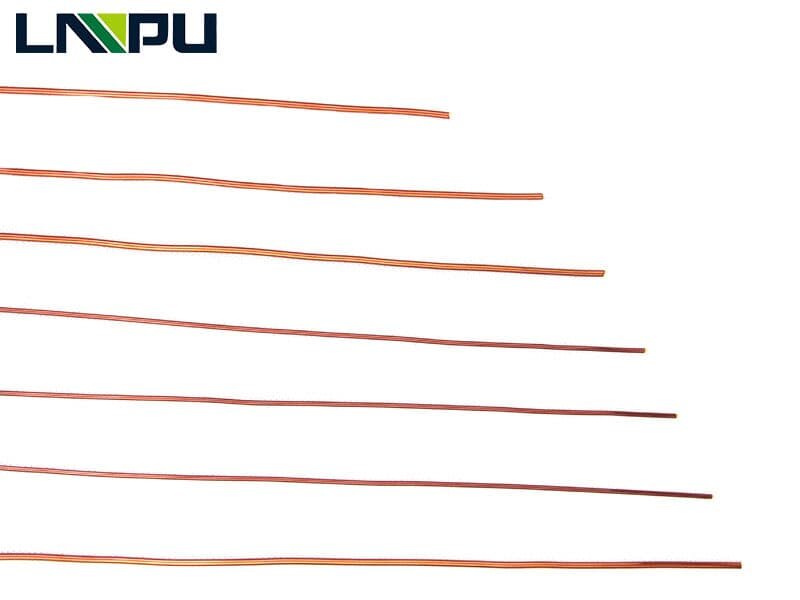

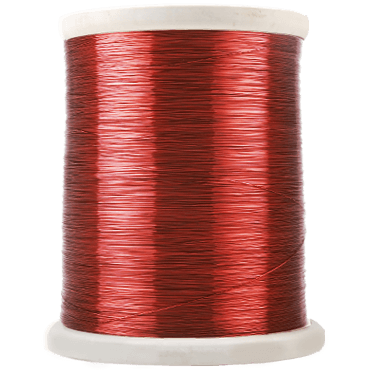

Enameled Round Copper Wire

DiameterRange (mm): 0.016-7.0mm;AWG:5-22
Temperature Class (C): 130, 155, 180, 200, 220
Standard: IEC, NEMA, GB, JIS
Color: natural color, red, blue, green and so on

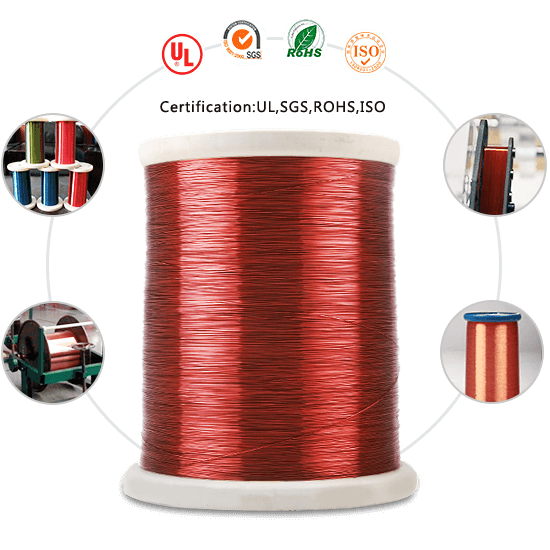

UL NO: E345303
Package: PT-4 PT-10 PT-25 PT-30 PT-60 PT-90 PT-200 wooden spool or according to customer requirements.

We're here to help:Easy ways to get the answers you need.

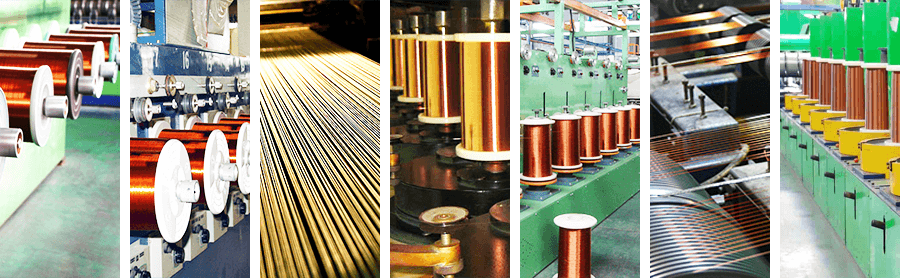

Production Process: Extrude & Draw Stretch the Thread Ultrasonic Clean; Panit Toast Spool

Size: 0.025-4.5mm
Thermal Class:130,155,180,200,220

Main Products:: Class 130 Polyester Enameled Round Copper Wire; Class 155 Modified Polyester Enameled Round Copper Wire; Class 180 Polyesterimide Enameled Round Copper Wire; Class 200 Polyamide-imide/ Polyesterimide Enameled Round Copper Wire; Class 220 Poluamide-imide/ Polyesterimide Enameled Round Copper Wire

Other Names:: Enameled Copper Winding Wires; Enamel Insulated Copper Wire; Double Enameled Copper Wire

Production Characteristics

1.Enameled Copper Wire is one kind of magnet wire which is consisted of bare round copper which accord with EN 13601Cu-ETP standard as the conductor and multilayer insulation layers. The multilayer insulation layers can be polyester, modified polyester or polyesterimide and so on.
2.Our Enameled Round Copper Wire is one kind of enameled wire which has high heat resistance. Its temperature class can be from 130℃ to 220℃.
3. Our Enameled Round Copper Wire has excellent thermodynamic property, good mechanical abrasion resistance and good chemical resistance.
4. Our Enameled Round Copper Wire uses TU2 oxygen-free copper as raw material.TU2 oxygen-free copper has good conductivity and heat conductivity.
Insulation: ELANTAS
Intelligent on-line monitoring equipment

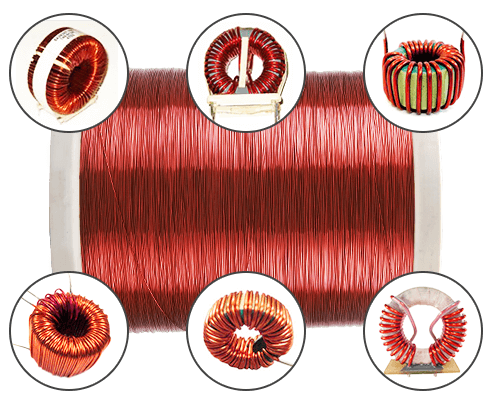

Application: The Application Of enameled round copper wire
Typical application include:
Sealed motor working under high temperature/Welding machines/Modern instruments/
Instruments and meters/Other deflection coils.

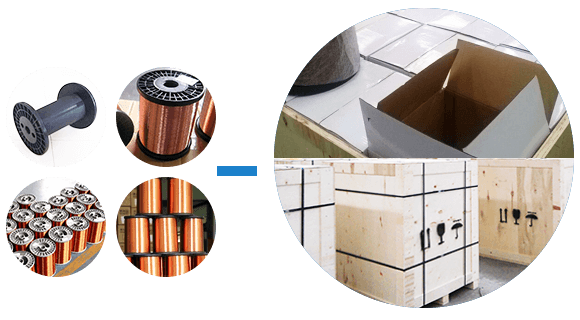

Packing: Plastic spool or wooden spool, flat wire length are customizable;

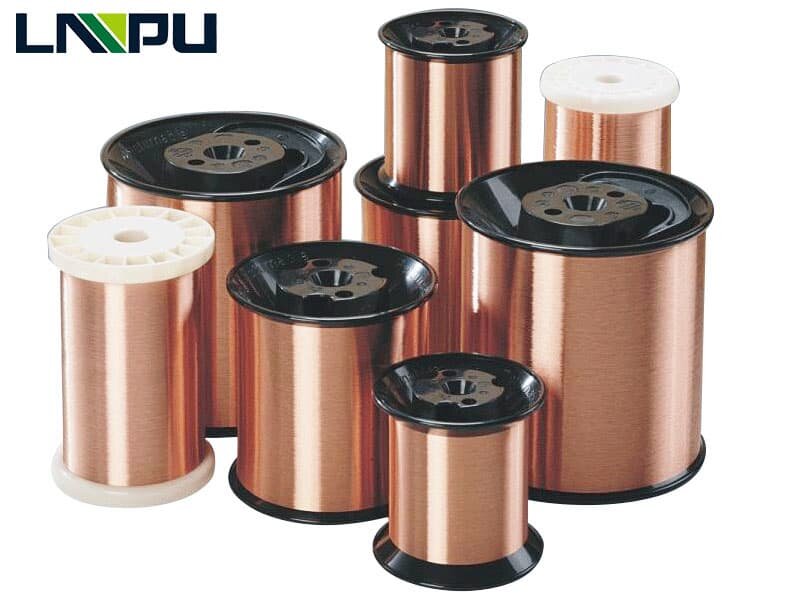

The usual spool specifications :
PT-4, PT-10,PT-25,PT-30,PT-60,PT-90,PT-200 or according to customer requirement
About The Packing, We Can According To Customers' Requirement!

Test of Main technical

The following is mian technical test;
The set standards according to customers’ requirement.
Besides,We Providing OEM,Please pay attention to that.

Item	Requirement of the standards
Stardards	MW36-A GB/T6109/IEC60317-0-1 GB/T23312IEC60317-0-3 MW35-A
Electrical resistivity	0.017241/0.02785 Ω mm²/m
Breakdown voltage	2500/5000v
Heat shock	The minimum Heat shock temperature 200,220,240℃
Resistance to solvents	Standard solvent.Use a pencil of hardness”2H”the coating shall not be removed
Cut Through	320,360,400℃, 2mins not break down
